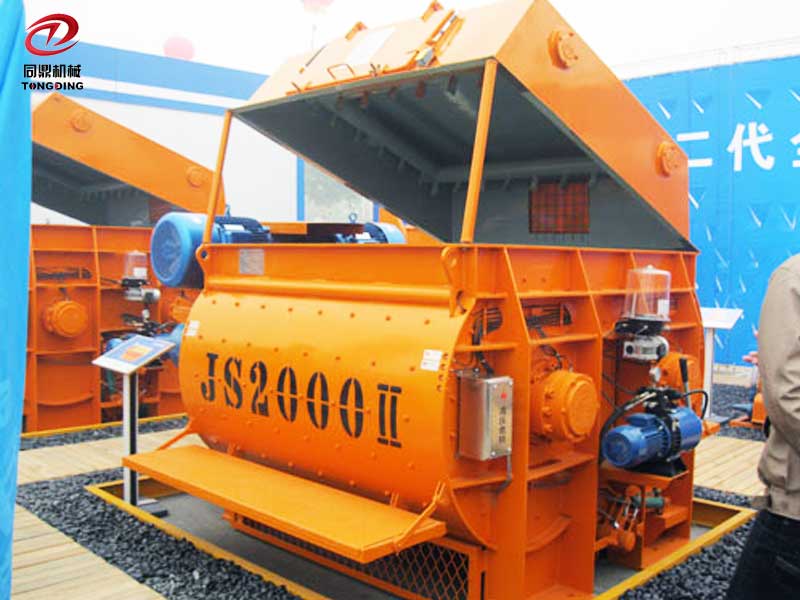

Descriptions of TD-JS2000-II Concrete Mixer:
TONGDING TD-JS2000-II Concrete Mixer is the new patent concrete mixer, which is researched and developed based on the high quality request from over sea customer. It can mix the plastic and half-dry hard concrete、fluid concrete and light aggregate concrete. It is applicable to the common construction working site, road, bridge and each kind of precast product factory. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine. TD-JS2000 has manual or pneumatic discharge mode. It has reasonable quality, high production efficiency, and low noise .The electrical system adopts import technical, which is good performance and reliability.
Features and Advantages of TD-JS2000-II Concrete Mixer:
1. Longer Life : TONGDING adopt the high hardness Mn- steel to produce the liner and blade and it can bearing 80,000.00~100,000.00 times working cycle ;
2. More Effective: With the new screw type blade, technician people join all of the blade as a whole mixer union to make the mixing system more steady and efficiency , it save 5~8 second each mixer cycle .
3. Economy: it can save your more power, electrical , and manpower when you produce the concrete .
4. Green Initiative: TONGDING designing can provide your the Green Initiative working place.
5. The height of discharge is 1.5m, 2.7m or 3.8m(or as user’s requirement)
After Sale Service:
I. Guarantee time All of the life time of TONGDING machine, free for the first 12 months except the wrong operation.
II. Free Spare parts
TONGDING will prepare the one set spare parts and delivery them along with the machine.
TONGDING have the 12 workshops to produce every parts of the concrete plant and we can produce spare parts to delivery them to you within 2 days.
III. Technical supporting
TONGDING Engineer will train you workers to make sure that they know every details about the machine to make sure they know how to deal with the urgent situation and can repair some normal problem:
Ⅳ. Office
If we have more than 5 plant order in one Area, we will set one office there to take care the after sell service.
Main Parameters of TD-JS2000-II Concrete Mixer:
| Item |
Parameter |
| Charge Volume |
3200L |
| Discharge Volume |
2000L |
| Productivity |
≥100m3 /h |
| Max Size of Aggregate |
80/60(Pebble/Macadam) mm |
| Mixing Blade |
Rev |
23r/min |
| Type |
Screw Type |
| Mixing Motor |
Type |
Y280S－4 |
| Power |
75kW |
| Water Pump Motor |
Type |
KQW65-100(I) |
| Power |
3kW |

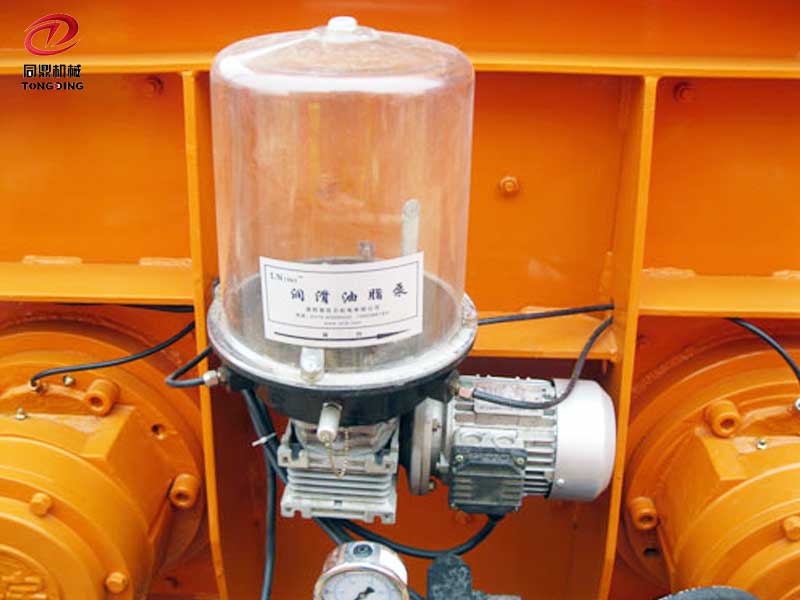

| Power of lubricate Motor |
0.06kW |
| Discharge Height |
3800mm |
| Dimension(L×W×H) |
Operating |
9870×3875×11510 mm |
| Weight |
15000kg |
