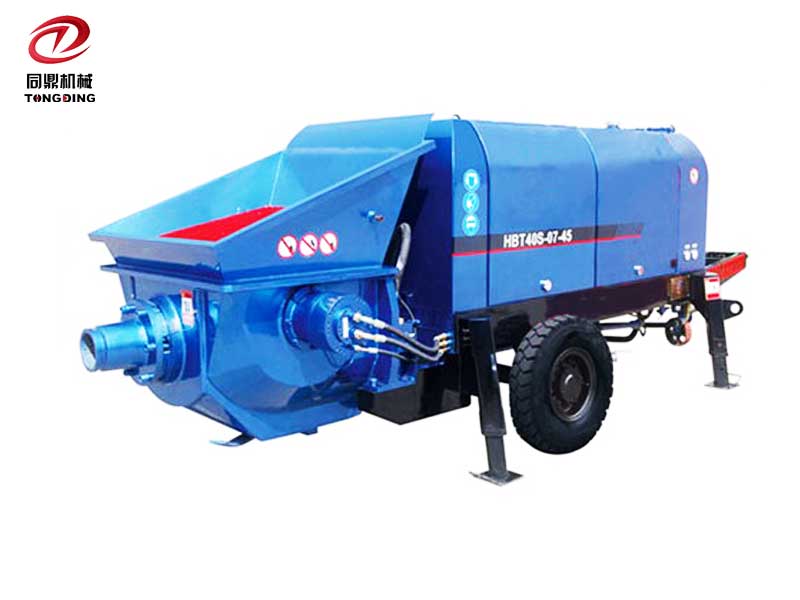

Description of TD-HBT series small (large aggregate) concrete pump:
Our company based on the mature hydraulic concrete delivery pump, developed the small and medium concrete pump that both pumping fine-stone concrete and mortar and pumping large aggregates. Main production throughput 20-40m ³/h, concrete conveying pressure is 3-13Mpa all kinds of motor concrete pumps. Suitable for industry and civil construction, transportation, railways, as well as concrete projects of water conservancy, electric power and other industries the economical, efficient delivery of concrete or mortar.
Features of TD-HBT series small (large aggregate) concrete pump:
1. Extended component life: uses the entire hydraulic reversing control hydraulic system, pumping, S tube distribution alternately reversing action without electrical intervention, reversing the impact of small, low noise and improved hydraulic pumps, hydraulic valve lifetime.
2. Improving equipment reliability: The full-hydraulic control hydraulic system eliminates the need for electrical control signals the middleman and greatly enhance the operation reliability of the equipment package.
3. Reduce fault frequency: full-hydraulic reversing control uses focus valve plate, puts main system hydraulic valve focus on one valve plate, reducing cross-connection pipe, the system is more compact, reduce opportunities for oil spill.
4. Reduce maintenance costs: full hydraulic reversing control hydraulic system deletes electronically controlled commutation system extremely susceptible to damage in four parts, reduces the maintenance cost of equipment.
Parameters of small (large aggregate) concrete pump:
| Item |
Unit |
TD-HBT40S -10-45 |
TD-HBT50S-12-55 |
| Theoretical Maximum Concrete Delivery Volume |
M3/h |
40 |
50 |
| Theoretical Maximum Concrete Delivery Pressure |
Mpa |
10 |
12 |
| Hydraulic System Pressure |
Mpa |
21 |
25 |
| Motor Speed |
r/min |
1480 |
1480 |
| Main Oil Pump |
Kawasaki, Japan |
|
| Master Cylinder Diameter/Pole Diameter * Stroke |
mm |
φ125/φ80*1200 |
φ125/φ80*1200 |
| Delivery Cylinder Diameter |
mm |
200 |
200 |
| Motor Power |
Kw |
45 |
55 |
| Hydraulic Oil Tank Capacity |
L |
300 |
300 |
| Hopper Capacity |
L |
600 |
600 |
| Over Weight |
Kg |
3500 |
3500 |
| Overall Dimension (Length * Width * Height) |
mm |
5270*1860*1875 |
5270*1860*1875 |
| Maximum Delivery Distance |
Vertical |
m |
120 |
140 |
| Horizontal |
m |
300 |
350 |
Our company based on the mature hydraulic concrete delivery pump, developed the small and medium concrete pump that both pumping fine-stone concrete and mortar and pumping large aggregates. Main production throughput 20-40m ³/h, concrete conveying pressure is 3-13Mpa all kinds of motor concrete pumps. Suitable for industry and civil construction, transportation, railways, as well as concrete projects of water conservancy, electric power and other industries the economical, efficient delivery of concrete or mortar.
1. Extended component life: uses the entire hydraulic reversing control hydraulic system, pumping, S tube distribution alternately reversing action without electrical intervention, reversing the impact of small, low noise and improved hydraulic pumps, hydraulic valve lifetime.
2. Improving equipment reliability: The full-hydraulic control hydraulic system eliminates the need for electrical control signals the middleman and greatly enhance the operation reliability of the equipment package.
3. Reduce fault frequency: full-hydraulic reversing control uses focus valve plate, puts main system hydraulic valve focus on one valve plate, reducing cross-connection pipe, the system is more compact, reduce opportunities for oil spill.
4. Reduce maintenance costs: full hydraulic reversing control hydraulic system deletes electronically controlled commutation system extremely susceptible to damage in four parts, reduces the maintenance cost of equipment.
