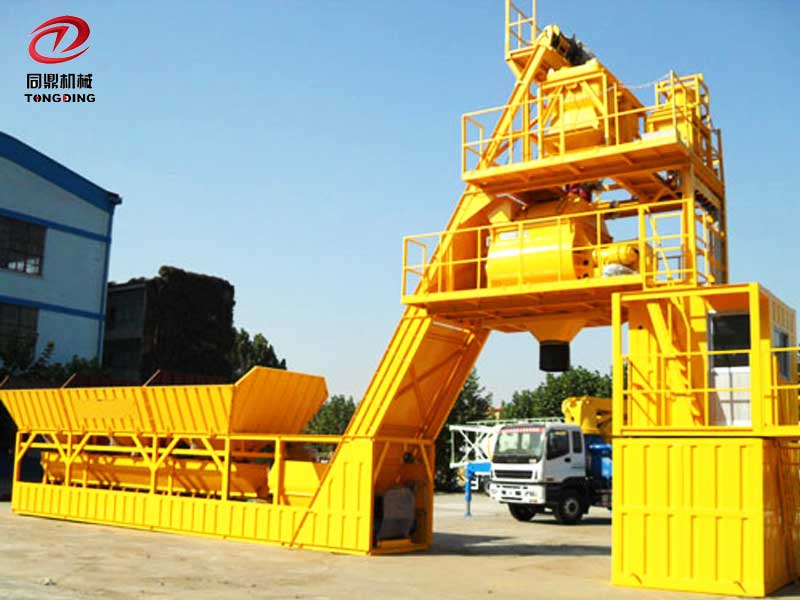

Descriptions of TD-UTM-100 Mobile Concrete Batching Plant:
The modular design of without foundation and commissioning enables the modular mobile concrete mixing plant convenient movement and quick installation. It only takes three days from installation to use. All necessary facilities such as: control room, laboratory and maintenance room are equipped. It is an ideal choice for engineering.
Features of TD-UTM-100 Mobile Concrete Mixing Plant:
1 "double composite spiral band" host using iron-chromium alloy wear-resistant materials, its shape and surface are with high shock resistance mechanical strength, good wear-resisting property, its center is with good toughness! Proper working life is 50,000 pots, a substantial increase in product life!
2. The whole plant uses automatic control systems, Siemens PLC, Schneider Electric components, computers and printing integration, simple operation, easy to debug.
3. Pneumatic system is with Taiwan Fusheng well-known air compressor, providing sufficient air supply for the entire concrete mixing plant.
4. Weighing system adopts international famous brands, weighing accuracy and sensitivity to ensure the quality of concrete.
5. Using section structure, unit modulation, fast installation and debugging and moving is very convenient.
General Information of TD-UTM-100 Mobile Concrete Batching Plant:
Capacity: 100m3/h
Mixing Time: 60 S
Max Aggregate Size: 60/80 mm
Discharging Height: 3800 mm
Total Power: 120 kw
Total Weight: 35 Ton

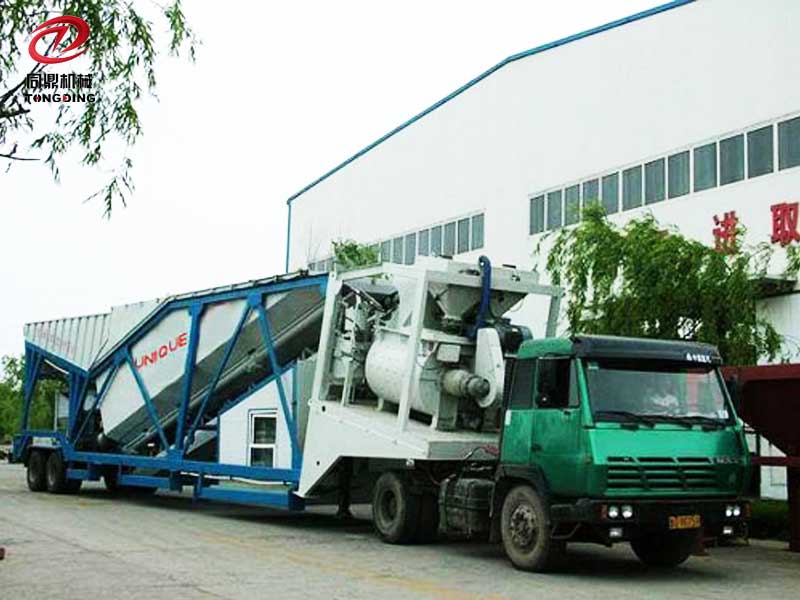

Transportation: Truck Trailer
Technical Parameters of TD-UTM-100 Mobile Concrete Mixing Plant:
1. MIXING SYSTEM
Twin Shaft Concrete Mixer: TD-JS2000
Volume: 3200 L
Capacity: 2000 L
Paddle quantity: 18pieces
Paddle Speed: 23.1 r/min
Mixing Motor: 2×37kw
2. AGGREGATE SYSTEM

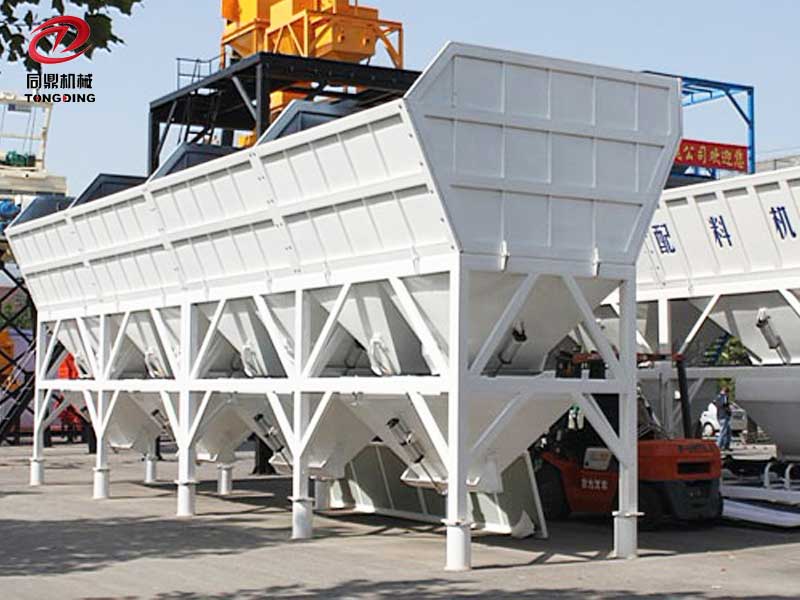

2.1Aggregate Batcher PLD3200
Volume: 4×15m3=60
Sort of aggregate: 4
Capacity: 120 m3/h
Power: 7.5 kw
Sand vibrator: 0.37kw×2

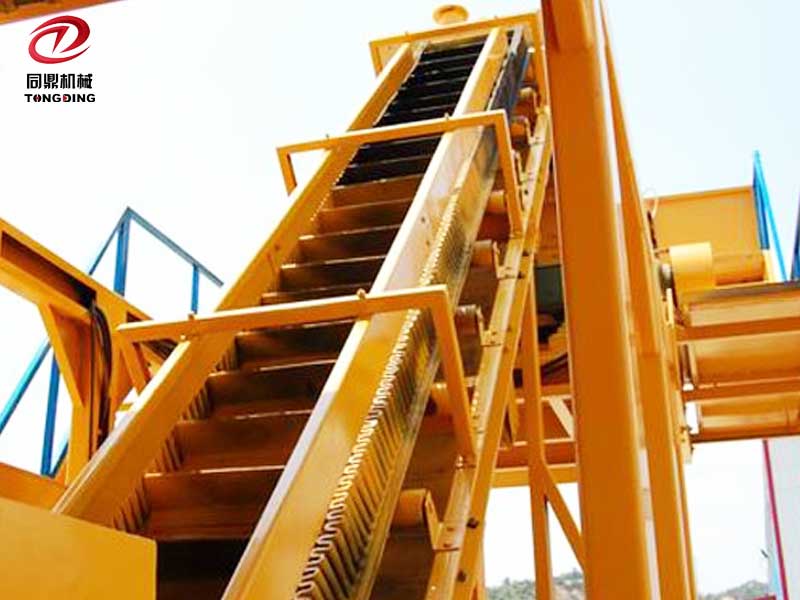

2.2. Aggregate Belt Conveyor 1 unit
Width: 1000 mm
Length: 20000mm
Speed: 1.6 m/s
Motor: 11kw
3. CEMENT SYSTEM
3.1 Cement Silo 2 units
Capacity: 100 Ton×2=200 Ton
Silo Diameter: Φ2800
3.2 Cement Screw Feeder 2 units
Diameter: Φ273 mm
Length: 9 m
4. ADDITIVE SYSTEM
Additive silo capacity: 1 m3
Pneumatic valve: Φ50 mm
Pump: 3kw
5. WATER SYSTEM
Submersible pump: 3kw
Water pump: 0.75kw
Water tank: 3 m3
6. AIR SYSTEM
Air Compressor: 1 unit
Power: 7.5 kw
Pressure: 0.7 Mpa
Airflew: 0.8 m3/min
7. WEIGHING SYSTEM:
7.1 Aggregate weighing 1 unit
Weighing Capacity: 1.6 m3
Precision: ±2%
7.2 Cement weighing 1 unit
Weighing Capacity: 1m3
Precision: ±1%
7.3 Water Weighing 1 unit
Weighing Capacity: 150 kg
Precision: ±1%
7.4 Additive Weighing 1 unit
Weighing Capacity: 40 kg
8. CONTROL SYSTEM:
PLC command and control operation
Main electrical component : Schneider
17’’ colorful computer
Manuel and Auto Control is freely changeable
