Site : Indonesia

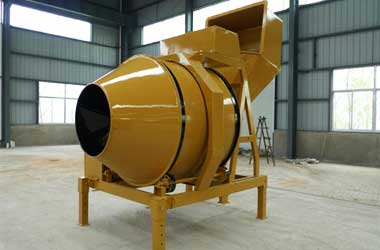

Equipment: TD-JZR500 Concrete mixers
5 units of Concrete mixers for Indonesia customer were on delivered 2013,24th, October.
Features :
1)It adds a water pump for water circulation between water tank of the engine and the radiator; keeps the engine water temperature to be stable.
2) Removing the air sucking point from the back to the front, reduce to suck the dust. It will be good to prolong the service life of the engine.
3) Compact structure; higher reliability; mixing evenly; big capacity; easy operation; easily movable between sites, etc.

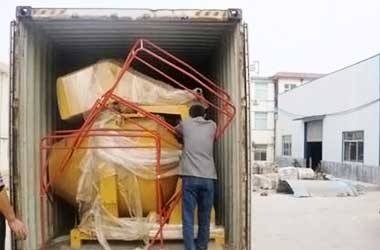

Delivery pictures
 |
 |
Main technical parameter
| Model | TD-JZR500 | |
| Type | Self-falling | |
| Towing | Four-towing wheels | |
| Capacity of loading | 750L | |
| Capacity of discharging | 500L | |
| Capacity of water tank | 140L | |
| Diesel engine | Model | YANMAR CY1115-XE |
| Power | 14.7kw | |
| Speed | 2200r/min | |
| Max towing speed | 20 km/h | |
| Max. Aggregate size | 60mm | |
| Output | 18~22m3/h | |
| Hopper lifting model | Hydraulic tipping hopper | |
| Tire | 6.50-16 | |
| 4.00-8 | ||
| Overall dimension(L×W×H) | 3750×2240×3800mm | |
| Total weight | 2050kg | |
